AIS, Amec

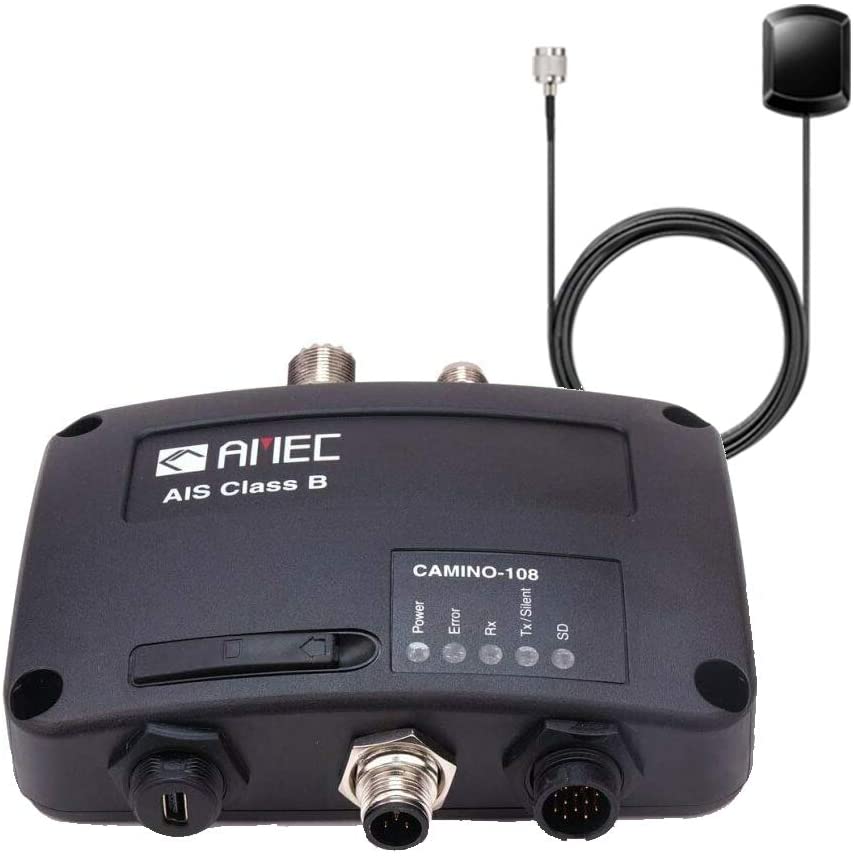

Amec Ais Camino 108
- CAMINO-108 is AMEC´s new generation class B AIS transponder.
- It allows exchange of AIS messages with other AIS equipped vessels within VHF range – the essential way to improve collision avoidance on the water.
- Designed to provide high performance and great reliability, resulting from our software defined radio technology expertise and years long field experience.
- Supports “Dual GPS Backup” to enable GPS input from both NMEA 2000 and NMEA 0183.
2,765.00 Dhs
Compare| VHF TRANSCEIVER | |
| Frequency Range | 156.025 MHz ~ 162.025 MHz |
| Channel Bandwidth | 25 KHz |
| Modulation | GMSK / FM |
| Data Rate | 9,600 bps |
| Number of AIS Transmitter | 1 |
| Number of AIS Receiver | 2 (one time-shared between AIS and DSC) |
| Number of DSC Receiver | 1 (time-shared between AIS and DSC) |
| AIS Channel 1 | CH 87B (161.975 MHz) |
| AIS Channel 2 | CH 88B (162.025 MHz) |
| Tx Power Output | 2 Watt (33 dBm ± 1.5 dB) |
| Rx Sensitivity | < -107 dBm @ 20% PER |
| DSC RECEIVER | |
| Modulation | 1,300 Hz / 2,100 Hz FSK |
| Data Rate | 1,200 bps ± 30 ppm |
| Spurious Response Rejection | ≧ 70 dB for signal @ -104 dBm; BER ≦ 1 % |
| Blocking | ≧ 84 dB for signal @ -104 dBm; BER ≦ 1 % |
| GNSS RECEIVER (integrated) | |
| Receiving Channels | 72 channels |
| Accuracy | IEC 61108-1 compliant |
| GNSS support: GPS & GLONASS (factory default) | |
Brand
Amec
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
