• Custom tabs with 30° and 90° straight and taper bent edges for maximum strength.
• Strong, corrosion resistant 12 gauge, 304 stainless steel.
• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding.
• Chord lengths available in 6″ (15cm), 9″ (23cm), 12″ (30cm) and 18″ (46cm).
• Black powder coated and mirror finishes available.
• Zinc anodes may be installed for additional galvanic corrosion resistance.
• Includes carriage bolts and nuts for actuator mounting to tab.
| Dimensions | 9 × 36 cm |
|---|

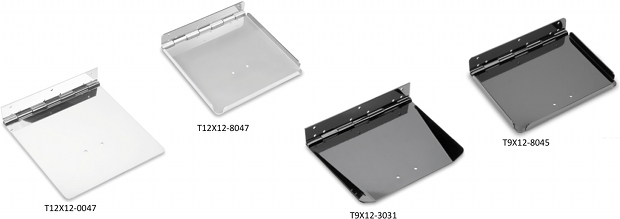

| Model Number | Tab Finish | Stainless Steel Gauge | Tab Angle Bend | Tab Size | Typical Boat Length | ||
| Inches | cm | Feet | Meters | ||||
| T6X9 | Standard SS | 12 | Flat | 6×9 | 15×23 | 16′-21′ | 5.0m-6.5m |
| T6X12-3211 | Standard SS | 12 | 30° Taper | 6×12 | 15×30 | 16′-25′ | 5.0m-7.5m |
| T9X12-3031 | Black Powder Coated | 12 | 30° Taper | 9×12 | 23×30 | 16′-25′ | 5.0m-7.5m |
| T9X12-8045 | Black Powder Coated | 12 | 90° Straight | 9×12 | 23×30 | 16′-25′ | 5.0m-7.5m |
| T9X12-0047 | Mirror SS | 12 | Flat | 9×12 | 23×30 | 16′-25′ | 5.0m-7.5m |
| T12X12-0047 | Mirror SS | 12 | Flat | 12×12 | 30×30 | 18′-32′ | 5.5m-9.5m |
| T12X12-8047 | Standard SS | 12 | 90° Straight | 12×12 | 30×30 | 18′-32′ | 5.5m-9.5m |
| T18X12-8837 | Standard SS | 12 | 90° Straight w/center channel | 18×12 | 46×30 | 28′-48′ | 8.5m-14.5m |
